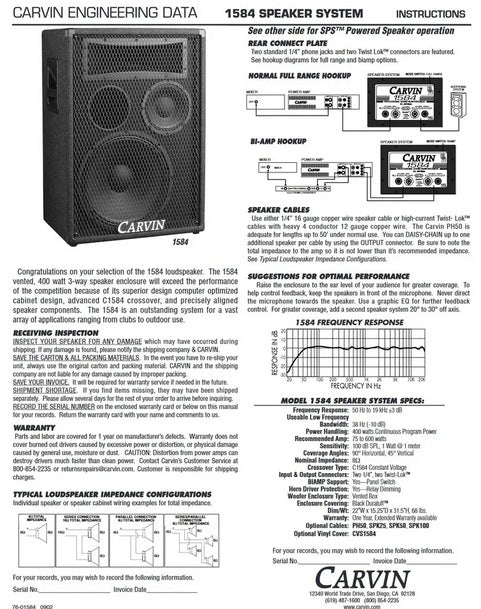

Carvin 1584

CARVIN ENGINEERING DATA

The 1584 vented, 400 watt rms 3-way speaker enclosure will exceed the performance

of the competition because of its superior design computer optimized

cabinet design, advanced C1584 crossover, and precisely aligned

speaker components. The 1584 is an outstanding system for a vast

array of applications ranging from clubs to outdoor use

Frequency Response: 50 Hz to 19 kHz ±3 dB

Useable Low Frequency

Input & Output Connectors: Two 1/4", two Twist-Lok™

Horn Driver Protection: Yes—Relay Dimming

Woofer Enclosure Type: Vented Box

+

8Ω

SPEAKER SYSTEM

BIAMP SW–HI FREQ. INPUT 8Ω

1584 FREQUENCY RESPONSE

Bandwidth: 38 Hz (-10 dB)

Power Handling: 400 watts Continuous Program Power

Recommended Amp: 75 to 600 watts

Sensitivity: 100 dB SPL, 1 Watt @ 1 meter

Coverage Angles: 90° Horizontal, 45° Vertical

Nominal Impedance: 8Ω

Crossover Type: C1584 Constant Voltage

BIAMP Support: Yes—Panel Switch
